Description

The Vutlan VT608t is a high-performance switched power distribution unit (PDU) engineered to provide advanced power management, monitoring, and environmental control capabilities for data centers, network cabinets, and mission-critical IT environments. With robust remote management features, this PDU allows administrators to monitor power usage and control each outlet independently, optimizing energy efficiency and improving equipment reliability.

Embedded Web Interface

All Vutlan monitoring units come with a built-in multi-language Web Interface for monitoring and control of the device. Here you can configure notifications & alerts, logic schemes, user access permissions, sensors, and elements. You can also inspect sensor graphs, logs, or view cameras.

‘VT408 Sensor extension unit‘ and ‘VT408DIN Sensor extension unit” increase the number of analog sensors connected to any Vutlan monitoring unit. Each VT408 unit adds 8 analog sensors. Multiple VT408 units can be connected using a daisy CAN chain. Sensors connected to the extension unit appear in the system automatically.

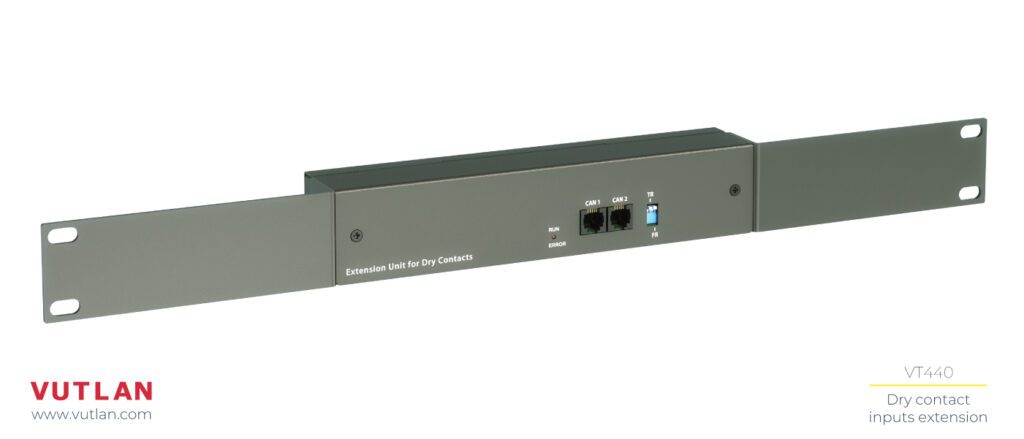

Add more dry contact inputs using VT440

VT440 / Dry contacts extension unit’ increases the number of dry contact input terminals connected to any Vutlan monitoring unit. Each VT440 unit adds x32 terminals. Each VT440 unit + VT32 extension adds x64 terminals. Multiple VT440 units can be connected using a daisy CAN chain. Vutlan web interface offers a separate dry contact inputs panel for monitoring, control and configuration.

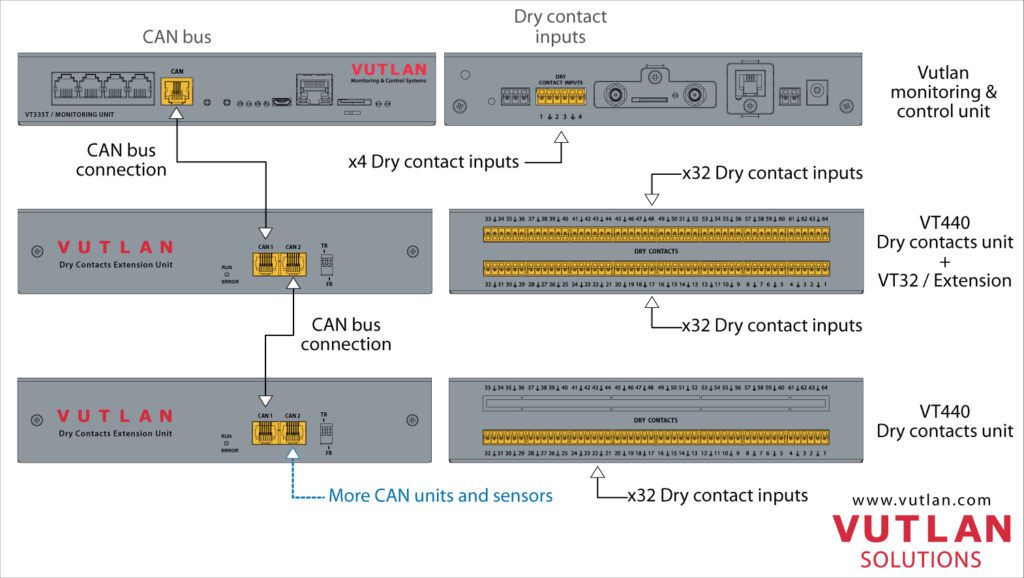

Connecting CAN sensors

You can connect up to x32 CAN units in a CAN bus chain. E.g. Each VT408 unit in a CAN bus chain adds 8 analog sensors. E.g. Each VT440 unit adds x32 or x64 dry contact inputs to the system. The additional power supply CAN12V-1A is needed only if the number of sensors in a CAN bus chain is more than 12 sensors. Supplies power for each additional group of 12 sensors.
